Couplings - Off Road
!
Larger picture

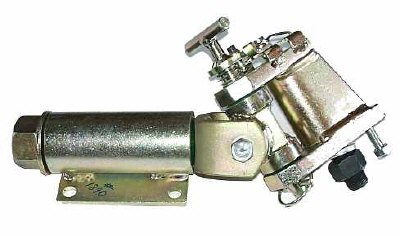

Hyland 2000 No Handbrake

The HYLAND 2000 Trailer Coupling is a fully articulated 50mm ball coupling that can be connected and disconnected in the blink of an eye. The HYLAND 2000 has been tested and is certified for use on trailers up to 2000Kg’s. The HYLAND 2000 articulates to allow off road use in the most severe conditions, has a low profile so will not interfere with doors or tail gate operation. The HYLAND 2000 can be padlocked on or off the tow vehicle. Base plate can be welded or bolted to trailer.The hole spacing is approx. 110mm * 75mm * 13mm.  The TOW BALL recommended for the HYLAND 2000 SERIES COUPLING is the standard 3500kg * 50mm ball.

Larger picture

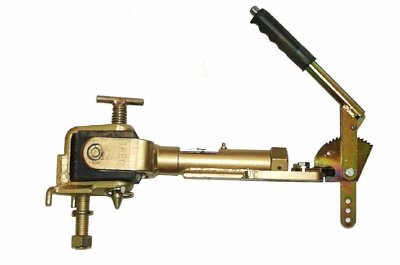

Hyland 2000 Handbrake Assembley

Handbrake Assembley for Hyland 2000 Coupling as above.
Larger picture

Hyland 2000 Cast Overide Body

The HYLAND 2000 Trailer Coupling is a fully articulated 50mm ball coupling that can be connected and disconnected in the blink of an eye. The HYLAND 2000 has been tested and is certified for use on trailers up to 2000Kg’s. The HYLAND 2000 articulates to allow off road use in the most severe conditions, has a low profile so will not interfere with doors or tail gate operation. The HYLAND 2000 can be padlocked on or off the tow vehicle. The Base plate hole spacing is the same as a standard over ride type coupling being approx 185mm * 55mm *13mm. The TOW BALL recommended for the HYLAND 2000 SERIES COUPLING is the standard 3500kg * 50 mm Ball

Larger picture

Hyland 2000 Cast Overide Body Handbrake Assembly

Handbrake Assembly to suit Hyland 2000 Cast Overide Body
Larger picture

Hyland 2000 Cast Electric Body

The HYLAND 2000 Trailer Coupling is a fully articulated 50mm ball coupling that can be connected and disconnected in the blink of an eye. The HYLAND 2000 has been tested and is certified for use on trailers up to 2000Kg’s. The HYLAND 2000 articulates to allow off road use in the most severe conditions, has a low profile so will not interfere with doors or tail gate operation. The HYLAND 2000 can be padlocked on or off the tow vehicle. The base plate hole spacing is the same as a standard over ride type coupling being 185mm * 55mm * 13 mm. The TOW BALL recommended for the HYLAND 2000 SERIES COUPLING  is a 3500kg * 50mm. Ball

Larger picture

Hyland 2000 Cast Electric Body Handbrake Assembly

Handbrake Assembly for Hyland 2000 Cast Electric Body





Larger picture

Hyland 3500 With Handbrake

Hyland 3500 With Handbrake. This HYLAND 3500 Series COUPLING will bolt on using the same hole patten as the standard electric type coupling uses , that is a hole patten of  185mm *55mm * 13mm. The TOW BALL recommended for the HYLAND 3500 SERIES COUPLING is the standard 3500kg * 50mm ball.



Larger picture

Hyland 3500 No Handbrake

Hyland 3500 No Handbrake This coupling has no provision to install a handbrake at a later date. The difference between this one and the one above is the handbrake mounting lugs are not welded on this one. This picture showing a handbrake is incorrect the picture is for demo purposes only The coupling is correct but with out the handbrake. The HYLAND 3500 Series has the same mounting holes as the standard type electric coupling , that is 185mm* 55mm *13mm. The TOW BALL recommended for the HYLAND 3500 SERIES COUPLING is the standard 3500 kg *50mm ball.
11844

Hyland Tow Ball

The recommended Tow Ball to best suit the HYLAND Couplings

This Ball is a 3500 kg rated 50mm ball.

This is a very popular Tow Ball.

This "PROMO" price is only when a Hyland Off Road Coupling is purchased from Trailer Warehouse

Weight: kg
Larger picture

Tregg U Bracket for Car

Tregg U Bracket for Car Total Weight 2.78 kg
Weight: kg
Larger picture

Tregg Poly Block Coupling 2270Kg Off Road

Tregg Poly Block Coupling 2270Kg Off Road Total Weight 7.76 kg
Weight: kg
Larger picture

Tregg Poly Block Coupling 2000Kg Override

Tregg Poly Block Coupling 2000Kg Override Total Weight 7 kg
Weight: kg
Larger picture

U Bracket and Pin Tregg Coupling

U Bracket and Pin Tregg Coupling Total Weight 2.54 kg
Weight: kg
Larger picture

Tregg Coupling Pin suits parts #'s 11824, 11825, 11826.

Tregg Coupling Pin suits parts #'s 11824, 11825, 11826. Total Weight 0.44 kg
Weight: kg
Larger picture

Poly Block for Tregg and Trigg Couplings.

Poly Block for Tregg Couplings. Total Weight 0.76 kg

CAUTIOM There are now many make believe "Polly Blocks" on the market and they are NOT interchangable.

Weight: kg
Larger picture

Trigg Poly Block Coupling Override 2000Kg

Trigg Poly Block Coupling Override 2000Kg Total Weight 10.88 kg
Larger picture

Trigg Poly Block Coupling 3 Tonne - Brass Bushes

Trigg Poly Block Coupling 3 Tonne - Brass Bushes Total Weight 0 kg
Weight: kg
Larger picture

Tregg Poly Block Coupling No Car Bracket -Off Road

Tregg Poly Block Coupling No Car Bracket -Off Road Total Weight 5.16 kg
Weight: kg
Larger picture

Trigg Poly Block Coupling Override without Car Bkt

Trigg Poly Block Coupling Override without Car Bkt Total Weight 7.62 kg
Weight: kg
Larger picture

All Terrain Off Road Coupling.3500 kg Rating.

All Terrain Off Road Coupling.3500 kg Rating. Total Weight 7.9 kg
